Dear support.

Thank you for your time reviewing all posts.
After hours of searching to fis this problem decide to open this , it may help others how may faced the same situation I have.

First of all, I got a provider and I test to make a call directly form Zoiper5, and it works so are sure there is no problem with the provider.

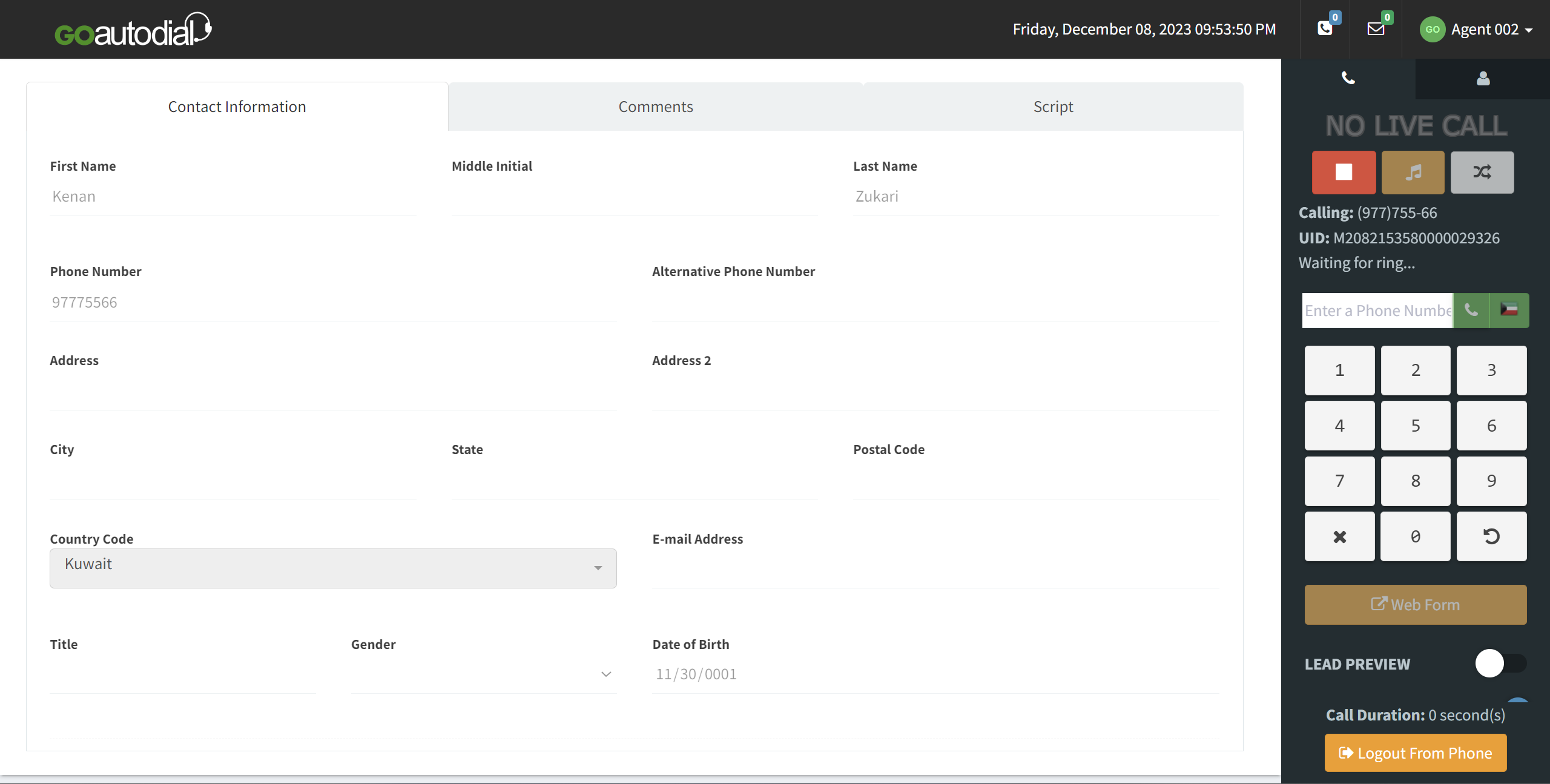

Now, when the agent log in , chose the campine , click on the file button, it just said waiting for ring and the call time out.

Now lets go the debugging
systemctl status asterisk l
------------------------

When agent log , do call , The asterisk -r show nothing even after "Console verbose was OFF and is now 30."

but if I view the messages log I can see the following

------------------------------
Lets see the "/var/log/asterisk/messages"

A lot of this message:

[Dec 8 11:47:16] NOTICE⁸⁸⁹⁵ chan_sip.c: -- Registration for '38XXXX74196@sip.ukrcall.net' timed out, trying again (Attempt #42)
[Dec 8 11:47:36] NOTICE⁸⁸⁹⁵ chan_sip.c: -- Registration for '38XXXX74196@sip.ukrcall.net' timed out, trying again (Attempt #43)
[Dec 8 11:47:56] NOTICE⁸⁸⁹⁵ chan_sip.c: -- Registration for '38XXXX74196@sip.ukrcall.net' timed out, trying again (Attempt #44)

-----------------------------------------
And here is the most errors appears!

[Dec  8 11:21:21] ERROR[14159] tcptls.c: Unable to bind AMI server to 0.0.0.0:5038: Address already in use
[Dec  8 11:21:21] NOTICE[14159] loader.c: 236 modules will be loaded.
[Dec  8 11:21:21] ERROR[14159] config_options.c: Could not find option suitable for category 'opus' named 'samprate' at line 210 of
[Dec  8 11:21:21] ERROR[14159] res_sorcery_config.c: Could not create an object of type 'opus' with id 'opus' from configuration file 'codecs.conf'
[Dec  8 11:21:21] WARNING[14159] res_phoneprov.c: Unable to find a valid server address or name.
[Dec  8 11:21:21] ERROR[14159] ari/config.c: No configured users for ARI
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database user found, using 'asterisk' as default.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database password found, using 'asterisk' as default.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database host found, using localhost via socket.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database name found, using 'asterisk' as default.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database port found, using 3306 as default.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database socket found, using '/var/lib/mysql/mysql.sock' as default.
[Dec  8 11:21:21] WARNING[14159] res_config_mysql.c: MySQL RealTime: No database socket found (and unable to detect a suitable path).
[Dec  8 11:21:21] WARNING[14159] res_musiconhold.c: No music on hold classes configured, disabling music on hold.
[Dec  8 11:21:21] WARNING[14159] chan_dahdi.c: Ignoring any changes to 'userbase' (on reload) at line 23.
[Dec  8 11:21:21] WARNING[14159] chan_dahdi.c: Ignoring any changes to 'vmsecret' (on reload) at line 31.
[Dec  8 11:21:21] WARNING[14159] chan_dahdi.c: Ignoring any changes to 'hassip' (on reload) at line 35.
[Dec  8 11:21:21] WARNING[14159] chan_dahdi.c: Ignoring any changes to 'hasiax' (on reload) at line 39.
[Dec  8 11:21:21] WARNING[14159] chan_dahdi.c: Ignoring any changes to 'hasmanager' (on reload) at line 47.
[Dec  8 11:21:21] WARNING[14159] db.c: Couldn't execute stmt: SQL logic error or missing database
[Dec  8 11:21:21] VERBOSE[14159] chan_sip.c: SIP channel loading...
[Dec  8 11:21:21] WARNING[14201] db.c: Couldn't execute statment: SQL logic error or missing database
[Dec  8 11:21:21] NOTICE[14159] chan_sip.c: The 'username' field for sip peers has been deprecated in favor of the term 'defaultuser'
[Dec  8 11:21:21] WARNING[14159] channel.c: Already have a handler for type 'MulticastRTP'
[Dec  8 11:21:21] ERROR[14159] chan_multicast_rtp.c: Unable to register channel class 'MulticastRTP'
[Dec  8 11:21:21] NOTICE[14244] chan_sip.c: Peer 'ukrcall' is now Reachable. (40ms / 2000ms)
[Dec  8 11:21:21] NOTICE[14159] confbridge/conf_config_parser.c: Adding default_menu menu to app_confbridge
[Dec  8 11:21:21] NOTICE[14159] cel_custom.c: No mappings found in cel_custom.conf. Not logging CEL to custom CSVs.
[Dec  8 11:21:21] NOTICE[14244] chan_sip.c: Peer 'kamailio' is now Reachable. (148ms / 2000ms)
[Dec  8 11:21:21] WARNING[14159] db.c: Couldn't execute statment: SQL logic error or missing database
[Dec  8 11:21:21] WARNING[14159] db.c: Couldn't execute statment: SQL logic error or missing database
[Dec  8 11:21:21] ERROR[14159] pbx_dundi.c: Unable to bind to 0.0.0.0 port 4520: Address already in use
[Dec  8 11:21:21] ERROR[14159] codec_dahdi.c: Failed to open /dev/dahdi/transcode: No such file or directory
[Dec  8 11:21:21] NOTICE[14159] app_conference.c: Loading app_konference module release=2.7
[Dec  8 11:21:21] VERBOSE[14159] asterisk.c: Asterisk Ready.

------------------------------------------------------------
Other status:
systemctl status ngcp-rtpengine

systemctl status kamailio -l
