Add meter on phone

in agent.php add this code at Line 1788:

&lt;div  class="sidebar-toggle-labels" style="font-weight: bold; text-transform: uppercase;"&gt;&lt;label for="muteMicrophone"&gt;<?=$lh->translationFor('microphone')?>&lt;/label&gt;&lt;/div&gt;

<!-- mio codice barre this mdy code -->

<script>
navigator.getUserMedia = navigator.getUserMedia ||
  navigator.webkitGetUserMedia ||
  navigator.mozGetUserMedia;
if (navigator.getUserMedia) {
  navigator.getUserMedia({
      audio: true
    },
    function(stream) {
      audioContext = new AudioContext();
      analyser = audioContext.createAnalyser();
      microphone = audioContext.createMediaStreamSource(stream);
      javascriptNode = audioContext.createScriptProcessor(2048, 1, 1);

analyser.smoothingTimeConstant = 0.3;
      analyser.fftSize = 1024;

microphone.connect(analyser);
      analyser.connect(javascriptNode);
      javascriptNode.connect(audioContext.destination);

canvasContext = $("#canvas")[0].getContext("2d");

javascriptNode.onaudioprocess = function() {
          var array = new Uint8Array(analyser.frequencyBinCount);
          analyser.getByteFrequencyData(array);
          var values = 0;

var length = array.length;
          for (var i = 0; i < length; i++) {
            values += (array[i]);
          }

var average = values / length;

// console.log(Math.round(average - 40));

canvasContext.clearRect(0, 0, 150, 300);
          canvasContext.fillStyle = '#e08e0b';
          canvasContext.fillRect(0, 100 - average, 150, 300);
          //canvasContext.fillStyle = '#262626';
          //canvasContext.font = "20px impact";
          //canvasContext.fillText(Math.round(average - 0), -2, 100);

} // end fn stream
    },
    function(err) {
      console.log("The following error occured: " + err.name)
    });
} else {
  console.log("getUserMedia not supported");
}

</script>

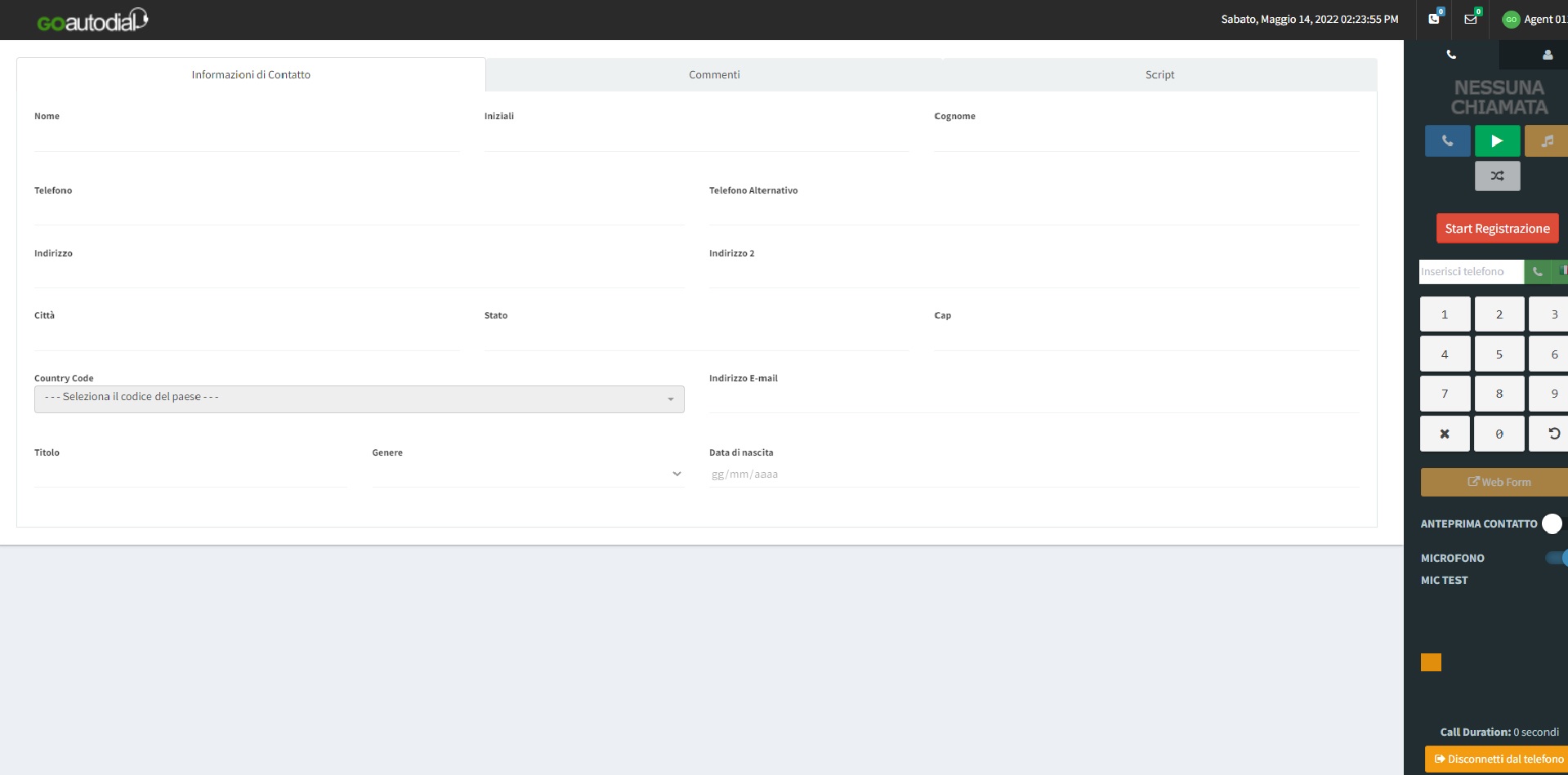

                <div  class="sidebar-toggle-labels" style="font-weight: bold; text-transform: uppercase;">MIC TEST</div>
                <canvas id="canvas" width="25" height="100"></canvas>
