help carrier

Added by dany lopez over 8 years ago

i have goautodial 3.3 i have this carrier (flouroute) its work to call to usa....

USERNAME:

[flowroute]

type=friend

secret=PASSWORD

username=USERNAME

host=sip.flowroute.com

dtmfmode=inband

rfc2833compensate=yes

context=inbound

canreinvite=no

allow=ulaw

allow=g729

insecure=port,invite

fromdomain=sip.flowroute.com
USA......
exten => _91NXXNXXXXXX,1,AGI

exten => _91NXXNXXXXXX,2,Dial(sip/${EXTEN:1}@flowroute,55,tTo)

exten => _91NXXNXXXXXX,3,Hangup

MEXICO its not work. help.....

exten => _52XXXXXXXXXX,1,AGI

exten => _52XXXXXXXXXX,2,Dial(sip/${EXTEN:1}@flowroute,55,tTo)

exten => _52XXXXXXXXXX,3,Hangup

thanks......


Replies (12)

RE: help carrier - Added by striker 247 over 8 years ago

post your cli log while dialling Mexico nos

make sure your trunk provider allows mexico route

br
striker
www.striker24x7.blogspot.com

RE: help carrier - Added by dany lopez over 8 years ago

thanks.. . yes . the trunks provider allows mexico route
[Nov 17 15:00:48] -- Executing [8600052@default:1] MeetMe("Local/8600052@default-00000019;2", "8600052,F") in new stack
[Nov 17 15:00:48] > Channel Local/8600052@default-00000019;1 was answered.
[Nov 17 15:00:48] Starting Local/8600052@default-00000019;1 at default,916646455050,1 failed so falling back to exten 's'
[Nov 17 15:00:48] Starting Local/8600052@default-00000019;1 at default,s,1 still failed so falling back to context 'default'
[Nov 17 15:00:48] -- Sent into invalid extension 's' in context 'default' on Local/8600052@default-00000019;1
[Nov 17 15:00:48] -- Executing [i@default:1] Playback("Local/8600052@default-00000019;1", "invalid") in new stack
[Nov 17 15:00:48] Manager 'sendcron' logged off from 127.0.0.1
[Nov 17 15:00:48] -- <Local/8600052@default-00000019;1> Playing 'invalid.gsm' (language 'en')
[Nov 17 15:00:49] Manager 'sendcron' logged on from 127.0.0.1
[Nov 17 15:00:49] -- Executing [58600052@default:1] MeetMe("Local/58600052@default-0000001a;2", "8600052,Fmq") in new stack
[Nov 17 15:00:49] > Channel Local/58600052@default-0000001a;1 was answered.
[Nov 17 15:00:49] -- Executing [8309@default:1] Answer("Local/58600052@default-0000001a;1", "") in new stack
[Nov 17 15:00:49] -- Executing [8309@default:2] Monitor("Local/58600052@default-0000001a;1", "wav,20151117-150048_6646455050_1711_agent002") in new stack
[Nov 17 15:00:49] Manager 'sendcron' logged off from 127.0.0.1
[Nov 17 15:00:49] -- Executing [8309@default:3] Wait("Local/58600052@default-0000001a;1", "3600") in new stack
[Nov 17 15:00:52] -- Executing [i@default:2] Hangup("Local/8600052@default-00000019;1", "") in new stack
[Nov 17 15:00:52] Spawn extension (default, i, 2) exited non-zero on 'Local/8600052@default-00000019;1'
[Nov 17 15:00:52] -- Executing [h@default:1] AGI in new stack
[Nov 17 15:00:52] -- <Local/8600052@default-00000019;1>AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----16--------------- completed, returning 0
[Nov 17 15:00:52] == Spawn extension (default, 8600052, 1) exited non-zero on 'Local/8600052@default-00000019;2'
[Nov 17 15:00:52] -- Executing [h@default:1] AGI in new stack
[Nov 17 15:00:52] -- <Local/8600052@default-00000019;2>AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----0--------------- completed, returning 0

mexico

exten => _52XXXXXXXXXX.,1,AGI
exten => _52XXXXXXXXXX.,2,Dial(SIP/${EXTEN:12}@flowroute,,tTo)
exten => _52XXXXXXXXXX.,3,Hangup
thanks...

RE: help carrier - Added by striker 247 over 8 years ago

the number which you are dialling "916646455050" not matching your mexico dialplan

also that no is not look like a mexico no, mexico no should start with 52

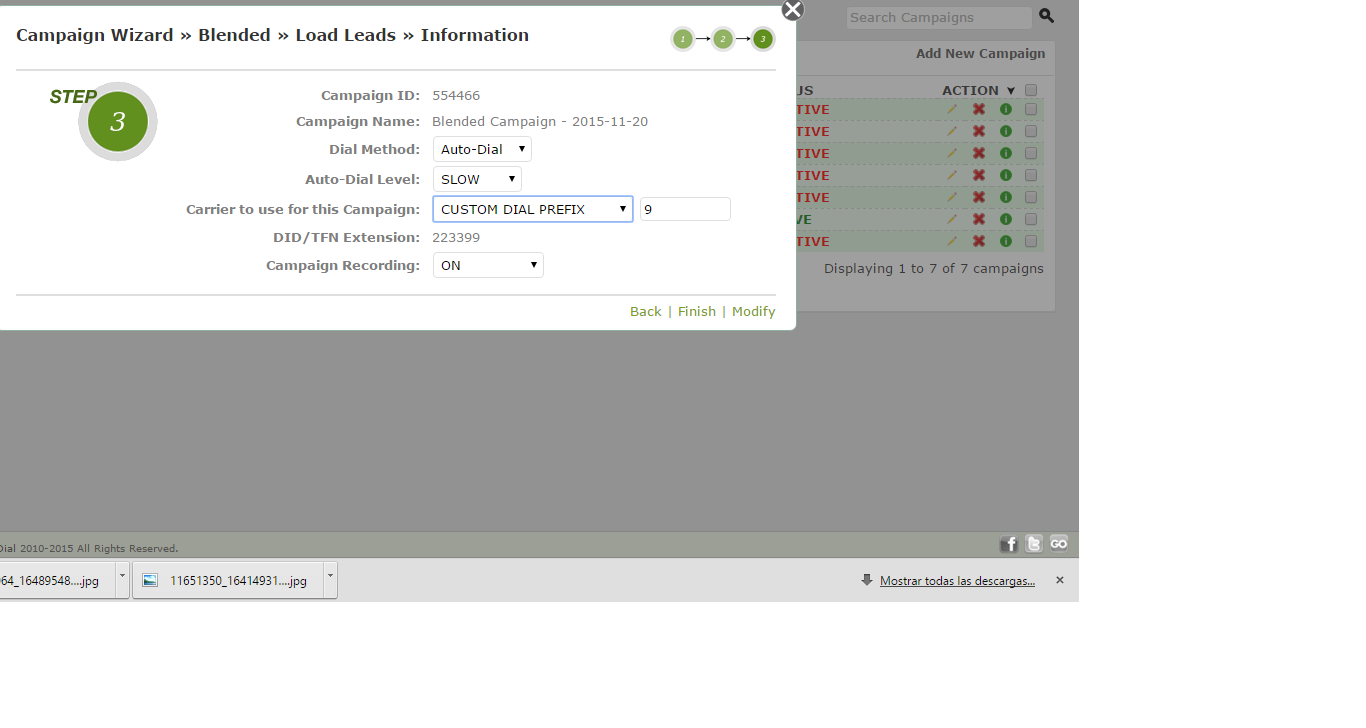

try the below dialplan and dial any mexico no(ie 52) with dial prefix 9 set in campaign.

exten => _952X.,1,AGI(agi://127.0.0.1:4577/call_log)
exten => _952X.,2,Dial(SIP/flowroute/${EXTEN:1},,Tto)
exten => _952X.,3,Hangup

br
striker
www.striker24x7.blogspot.com

RE: help carrier - Added by dany lopez over 8 years ago

thanks . this setup.
[flow]
disallow=all
allow=ulaw
type=friend
dtmfmode=rfc2833
context=trunkinbound
qualify=yes
insecure=very
nat=yes
host=sip.flowroute.com
username=xxxxxx
secret=xxxxxxxxxx
allow=alaw

dialplan
exten => _952X.,1,AGI
exten => _952X.,2,Dial(SIP/flowroute/${EXTEN:4}@flow,,tTo)
exten => _952X.,3,Hangup

this cli

-- Executing [8600051@default:1] MeetMe("Local/8600051@default-0000000e;2", "8600051,F") in new stack
[Nov 18 00:11:07]        > Channel Local/8600051@default-0000000e;1 was answered.
[Nov 18 00:11:07]   == Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:07]     -- Executing [9526646265841@default:1] AGI("Local/8600051@default-0000000e;1", "agi://127.0.0.1:4577/call_log") in new stack
[Nov 18 00:11:07]     -- AGI Script Executing Application: (EXEC) Options: (Set(_CAMPCUST=1810))
[Nov 18 00:11:07]     -- &lt;Local/8600051@default-0000000e;1&gt;AGI Script agi://127.0.0.1:4577/call_log completed, returning 0
[Nov 18 00:11:07]     -- Executing [9526646265841@default:2] Dial("Local/8600051@default-0000000e;1", "SIP/flowroute/526646265841,,Tto") in new stack
[Nov 18 00:11:07]    Using SIP RTP CoS mark 5
[Nov 18 00:11:08]    Manager 'sendcron' logged on from 127.0.0.1
[Nov 18 00:11:08]     -- Executing [58600051@default:1] MeetMe("Local/58600051@default-0000000f;2", "8600051,Fmq") in new stack
[Nov 18 00:11:08]        > Channel Local/58600051@default-0000000f;1 was answered.
[Nov 18 00:11:08]     -- Executing [8309@default:1] Answer("Local/58600051@default-0000000f;1", "") in new stack
[Nov 18 00:11:08]    Manager 'sendcron' logged on from 127.0.0.1
[Nov 18 00:11:08]    Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:08]     -- Executing [8309@default:2] Monitor("Local/58600051@default-0000000f;1", "wav,20151118-001105_6646265841_1810_agent001") in new stack
[Nov 18 00:11:08]     -- Executing [8309@default:3] Wait("Local/58600051@default-0000000f;1", "3600") in new stack
[Nov 18 00:11:08]    Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:08] ERROR[20282]: netsock2.c:269 ast_sockaddr_resolve: getaddrinfo("flowroute", "(null)", ...): Name or service not known
[Nov 18 00:11:08] WARNING[20282]: chan_sip.c:5865 create_addr: No such host: flowroute
[Nov 18 00:11:08] WARNING[20282]: app_dial.c:2345 dial_exec_full: Unable to create channel of type 'SIP' (cause 20 - Subscriber absent)
[Nov 18 00:11:08]    Everyone is busy/congested at this time (1:0/0/1)
[Nov 18 00:11:08]     -- Executing [9526646265841@default:3] Hangup("Local/8600051@default-0000000e;1", "") in new stack
[Nov 18 00:11:08]    Spawn extension (default, 9526646265841, 3) exited non-zero on 'Local/8600051@default-0000000e;1'
[Nov 18 00:11:08]     -- Executing [h@default:1] AGI("Local/8600051@default-0000000e;1", "agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----20-----CHANUNAVAIL----------") in new stack
[Nov 18 00:11:08]     -- &lt;Local/8600051@default-0000000e;1&gt;AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----20-----CHANUNAVAIL---------- completed, returning 0
[Nov 18 00:11:08]    Spawn extension (default, 8600051, 1) exited non-zero on 'Local/8600051@default-0000000e;2'
[Nov 18 00:11:08]     -- Executing [h@default:1] AGI("Local/8600051@default-0000000e;2", "agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----0---------------") in new stack
[Nov 18 00:11:08]     -- &lt;Local/8600051@default-0000000e;2&gt;AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----0--------------- completed, returning 0
go*CLI>

RE: help carrier - Added by dany lopez over 8 years ago

thanks . this setup.
[flow]
disallow=all
allow=ulaw
type=friend
dtmfmode=rfc2833
context=trunkinbound
qualify=yes
insecure=very
nat=yes
host=sip.flowroute.com
username=xxxxxx
secret=xxxxxxxxxx
allow=alaw

dialplan
exten => _952X.,1,AGI
exten => _952X.,2,Dial(SIP/flowroute/${EXTEN:4}@flow,,tTo)
exten => _952X.,3,Hangup

this cli

-- Executing [8600051@default:1] MeetMe("Local/8600051@default-0000000e;2", "8600051,F") in new stack
[Nov 18 00:11:07]        > Channel Local/8600051@default-0000000e;1 was answered.
[Nov 18 00:11:07]   == Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:07]     -- Executing [9526646265841@default:1] AGI("Local/8600051@default-0000000e;1", "agi://127.0.0.1:4577/call_log") in new stack
[Nov 18 00:11:07]     -- AGI Script Executing Application: (EXEC) Options: (Set(_CAMPCUST=1810))
[Nov 18 00:11:07]     -- &lt;Local/8600051@default-0000000e;1&gt;AGI Script agi://127.0.0.1:4577/call_log completed, returning 0
[Nov 18 00:11:07]     -- Executing [9526646265841@default:2] Dial("Local/8600051@default-0000000e;1", "SIP/flowroute/526646265841,,Tto") in new stack
[Nov 18 00:11:07]    Using SIP RTP CoS mark 5
[Nov 18 00:11:08]    Manager 'sendcron' logged on from 127.0.0.1
[Nov 18 00:11:08]     -- Executing [58600051@default:1] MeetMe("Local/58600051@default-0000000f;2", "8600051,Fmq") in new stack
[Nov 18 00:11:08]        > Channel Local/58600051@default-0000000f;1 was answered.
[Nov 18 00:11:08]     -- Executing [8309@default:1] Answer("Local/58600051@default-0000000f;1", "") in new stack
[Nov 18 00:11:08]    Manager 'sendcron' logged on from 127.0.0.1
[Nov 18 00:11:08]    Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:08]     -- Executing [8309@default:2] Monitor("Local/58600051@default-0000000f;1", "wav,20151118-001105_6646265841_1810_agent001") in new stack
[Nov 18 00:11:08]     -- Executing [8309@default:3] Wait("Local/58600051@default-0000000f;1", "3600") in new stack
[Nov 18 00:11:08]    Manager 'sendcron' logged off from 127.0.0.1
[Nov 18 00:11:08] ERROR[20282]: netsock2.c:269 ast_sockaddr_resolve: getaddrinfo("flowroute", "(null)", ...): Name or service not known
[Nov 18 00:11:08] WARNING[20282]: chan_sip.c:5865 create_addr: No such host: flowroute
[Nov 18 00:11:08] WARNING[20282]: app_dial.c:2345 dial_exec_full: Unable to create channel of type 'SIP' (cause 20 - Subscriber absent)
[Nov 18 00:11:08]    Everyone is busy/congested at this time (1:0/0/1)
[Nov 18 00:11:08]     -- Executing [9526646265841@default:3] Hangup("Local/8600051@default-0000000e;1", "") in new stack
[Nov 18 00:11:08]    Spawn extension (default, 9526646265841, 3) exited non-zero on 'Local/8600051@default-0000000e;1'
[Nov 18 00:11:08]     -- Executing [h@default:1] AGI("Local/8600051@default-0000000e;1", "agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----20-----CHANUNAVAIL----------") in new stack
[Nov 18 00:11:08]     -- &lt;Local/8600051@default-0000000e;1&gt;AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----20-----CHANUNAVAIL---------- completed, returning 0
[Nov 18 00:11:08]    Spawn extension (default, 8600051, 1) exited non-zero on 'Local/8600051@default-0000000e;2'
[Nov 18 00:11:08]     -- Executing [h@default:1] AGI("Local/8600051@default-0000000e;2", "agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----0---------------") in new stack
[Nov 18 00:11:08]     -- &lt;Local/8600051@default-0000000e;2&gt;AGI Script agi://127.0.0.1:4577/call_log--HVcauses--PRI-----NODEBUG-----0--------------- completed, returning 0
go*CLI>

RE: help carrier - Added by striker 247 over 8 years ago

"[Nov 18 00:11:08] WARNING20282: chan_sip.c:5865 create_addr: No such host: flowroute"
in the dialplan you have give flowroute
but you sip trunk context named as flow

change your dialplan

exten => _952X.,1,AGI(agi://127.0.0.1:4577/call_log)
exten => _952X.,2,Dial(SIP/flow/${EXTEN:1},,Tto)
exten => _952X.,3,Hangup

br
striker
www.striker24x7.blogspot.com

RE: help carrier - Added by dany lopez over 8 years ago

thanks. striker.. .for example


RE: help carrier - Added by dany lopez over 8 years ago

this is my setup


RE: help carrier - Added by dany lopez over 8 years ago

mexico code.


RE: help carrier - Added by dany lopez over 8 years ago

for example when i make a campaing to calling mexico this correct?
this is my dialplan
exten => _952X.,1,AGI
exten => _952X.,2,Dial(SIP/flow/${EXTEN:1},,Tto)
exten => _952X.,3,Hangup


RE: help carrier - Added by striker 247 over 8 years ago

yes fine

dial now and post the result

br
striker
www.striker24x7.blogspot.com

RE: help carrier - Added by dany lopez over 8 years ago

thanks. its working... .. . goood.
nice.
